Crash Bars PRO + MAX for KTM 390 Adventure X / R
The crash bars for the KTM 390 Adventure X and KTM 390 Adventure R were engineered to meet the needs of two distinct riding styles — touring and off-road. Whether you ride long asphalt stretches on the Adventure X or tackle demanding terrain on the Adventure R with its larger spoked wheels, our crash bars deliver top-tier motorcycle protection.

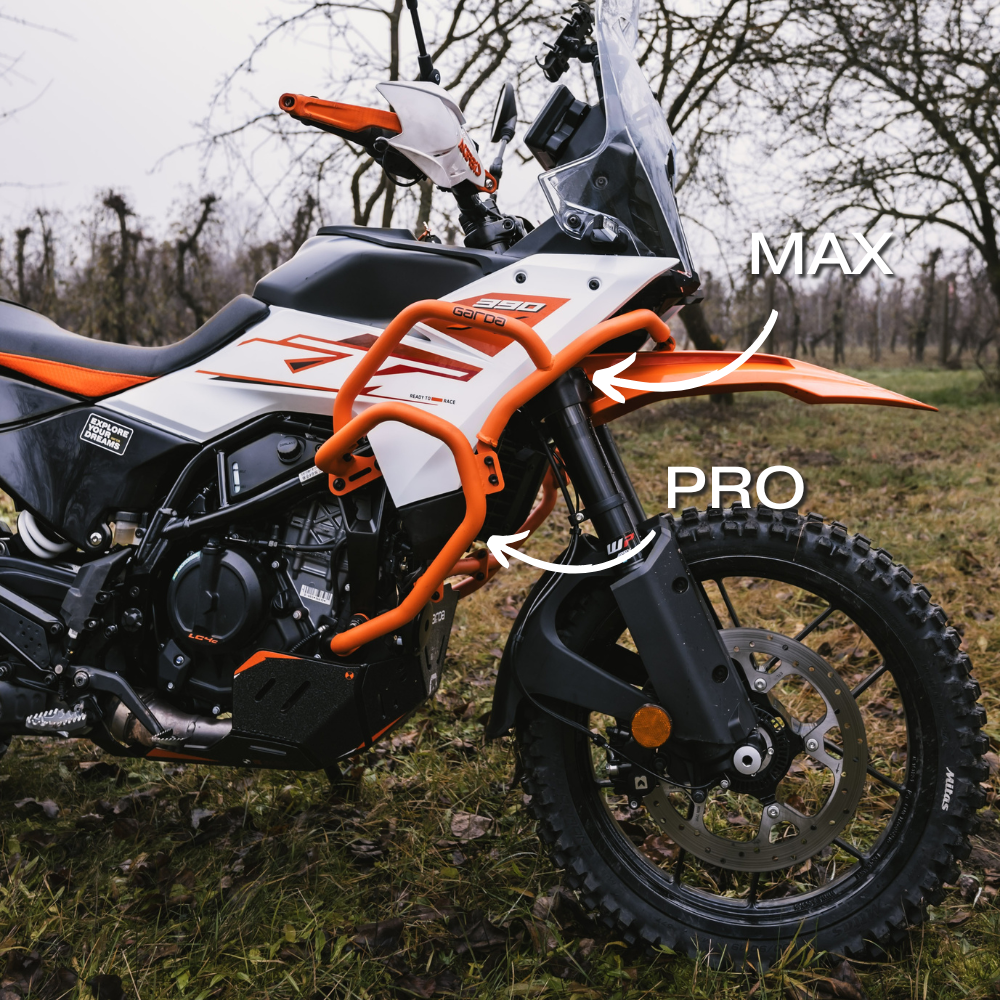

The PRO Crash Bars form the foundation of the protection system — shielding the lower parts of the motorcycle, frame, and critical components exposed to impact. Made from 25 mm steel tubing with 2 mm wall thickness, they offer exceptional durability without adding unnecessary weight.

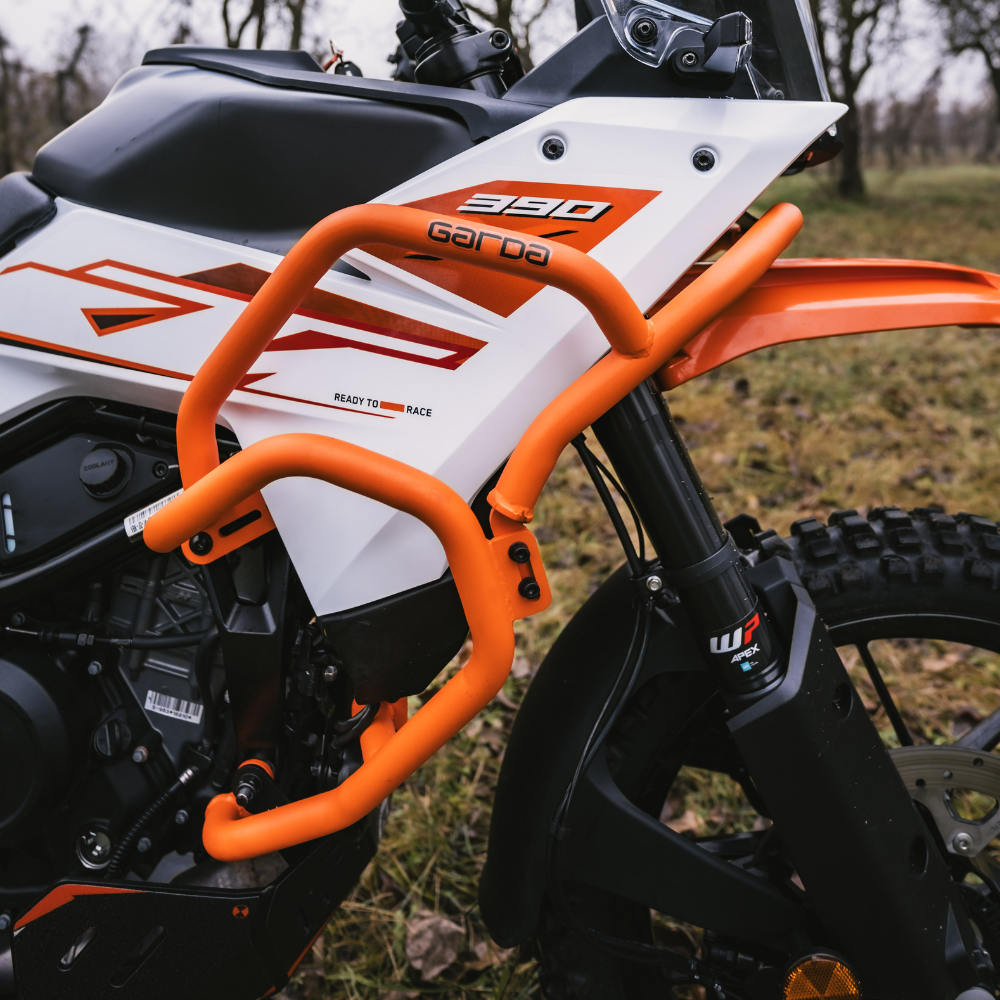

The MAX Crash Bars provide upper-body protection by securing the fuel tank and fairings. MAX bars can be installed only together with PRO bars, forming a rigid, stable structure resistant to impacts, vibrations, and falls.
Crash bars are mounted exclusively to the motorcycle frame — never to the engine — ensuring maximum safety, zero stress points, and easy installation.
Crash Bars Specifications
PRO Crash Bars
-
Compatibility: KTM 390 Adventure X / R
-
Material: Steel
-
Tube Diameter: 25 mm
-
Wall Thickness: 2 mm
-
Weight: 3.1 kg
-
Mounting: Directly to the frame (no engine mounting)
-
Finish: Sandblasting, epoxy primer, powder coating
-
Welding: TIG
MAX Crash Bars
-
Compatibility: KTM 390 Adventure X / R
-
Installation: Requires PRO Crash Bars
-
Material: Steel
-
Tube Diameter: 25 mm
-
Wall Thickness: 2 mm
-
Weight: 2.5 kg
-
Finish: Sandblasting, epoxy primer, powder coating
-
Welding: TIG
